Diamond Antenna K3000 3 Point Magnetic Antenna Base
Brand:
Diamond
Diamond Antenna K3000 3 Point Magnetic Antenna Base
Diamond Antenna K3000 3 Point Magnetic Antenna Base
Diamond Antenna K3000 3 Point Magnetic Antenna Base

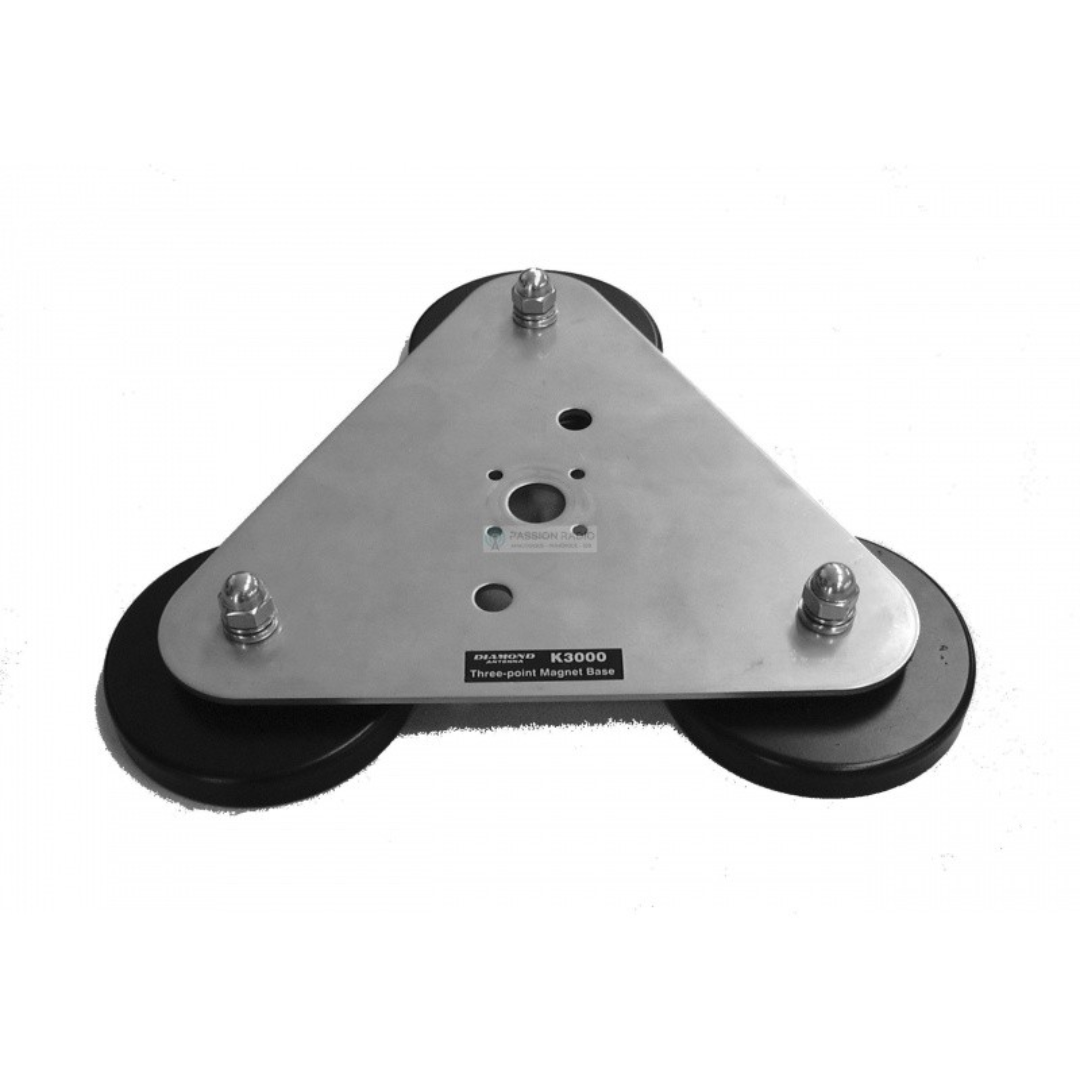

The Diamond K3000 is a heavy-duty three-point magnetic antenna base engineered for secure mounting of mobile antennas on vehicle roofs and other metallic surfaces. Featuring three high-strength magnetic pads, a tilt-angle mounting structure, and support for larger mobile antennas, the K3000 provides exceptional holding force and stability for demanding HF, VHF, and UHF mobile installations.
Key Features
- Heavy-duty three-point magnetic antenna mounting base
- Three high-strength magnetic pads for enhanced holding power
- Designed for larger mobile antenna installations
- Supports antennas up to 1.85 meters in length
- Suitable for antennas weighing up to 1.1 kg
- Excellent stability at highway driving speeds
- Wide magnetic footprint distributes antenna load evenly
- Tilt-angle mounting structure for installation flexibility
- Ideal for HF, VHF, and UHF mobile antennas
- Compatible with Diamond K9000 motorized antenna mount
- Heavy-duty metal construction
- Weather-resistant outdoor design
- Provides strong adhesion to vehicle roofs and metallic surfaces
- Reduces antenna movement under wind loading
- Suitable for amateur radio mobile installations
- Excellent solution where permanent drilling is not desired
- Large contact area improves mounting security
- Can be used with custom antenna mounting configurations
- Central mounting hole for antenna bracket installation
- Supports PL and N-type mounting hardware configurations
- Easy installation and removal
- Ideal for temporary, portable, and mobile applications
- Professional-grade Diamond Antenna construction
- Designed for long-term mobile radio use
- Reliable support for larger mobile antenna systems
Typical Uses
- Mobile amateur radio installations
- HF mobile antenna mounting
- VHF and UHF mobile antenna systems
- Temporary vehicle antenna deployments
- Field Day and portable operations
- Emergency communication vehicles
- Commercial and monitoring vehicle installations
In the Box
- Diamond K3000 Three-Point Magnetic Base
- Protective removal attachment
- Installation instructions
| Brand | Diamond Antenna |
| Model Number | K3000 |
| Product Type | Three-Point Magnetic Antenna Base |
| Mount Type | Magnetic Mount |
| Magnet Quantity | 3 |
| Maximum Antenna Length | 1.85m |
| Maximum Antenna Weight | 1.1kg |
| Product Weight | 1.5kg |

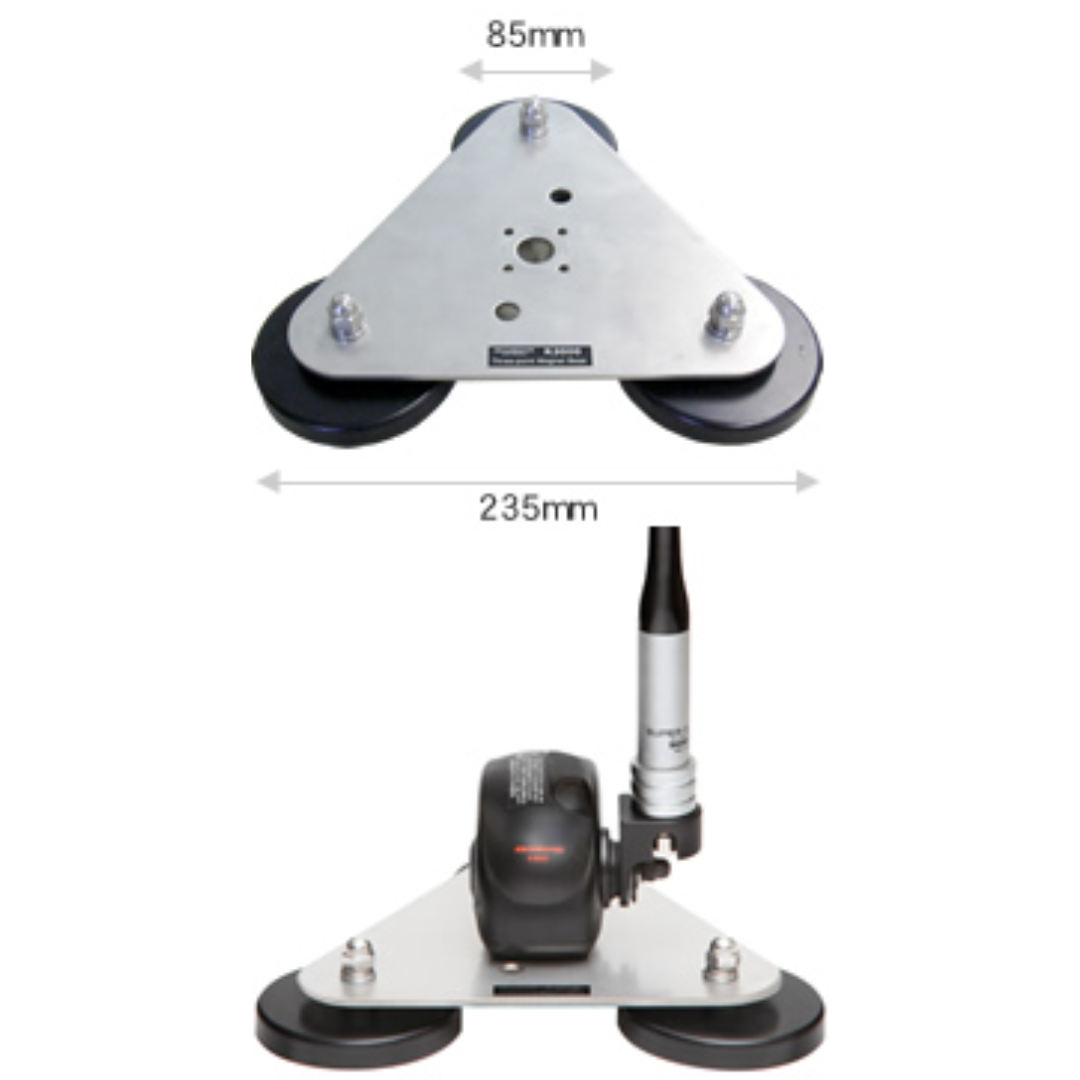

| Magnet Diameter | 85mm |
| Mounting Style | Tilt-Angle Structure |
| Construction | Heavy-Duty Metal |
| Weather Resistance | Outdoor Rated |
| Central Mount Hole Diameter | 16mm |
| Mounting Hole Pattern | 23mm x 23mm |
| Compatible Mount | Diamond K9000 |
| Application | Mobile Antenna Installation |
| Application | HF/VHF/UHF Mobile Antennas |
| Installation Type | Vehicle Roof Mount |
