Comet CSW-100 2 Way Wideband Coaxial Switch - RFCharge
Comet CSW-100 2 Way Wideband Coaxial Switch - RFCharge
SKU: RF-CSW-100

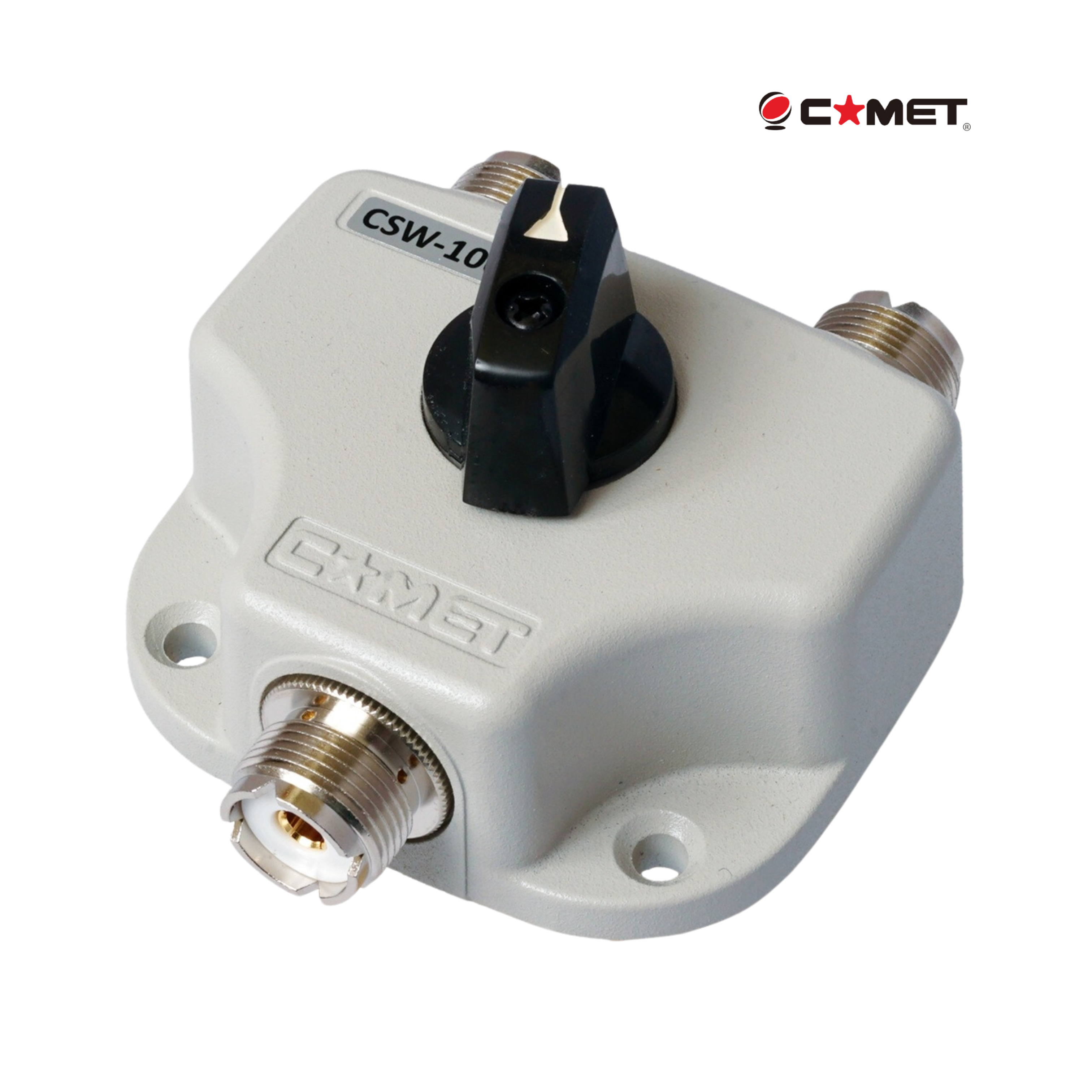

Comet CSW-100 2 Way Wideband Coaxial Switch

Regular price Rs. 4,600.00 (Including GST)
Sale price Rs. 4,600.00 (Including GST) Regular price
Unit price
Brand: Comet
Estimated Domestic Ship Date: 5 days lead time
Estimated International Ship Date: 5 days lead time
Estimated Domestic Delivery: Standard: 5-7 Days | Express: 1-4 Days
Estimated International Delivery: Standard: 10-20 Days
Ask a question

Ask a Question

* Required fields

 Size guide

Share this product:

Comet CSW-100 2 Way Wideband Coaxial Switch - RFCharge

Comet CSW-100 2 Way Wideband Coaxial Switch

Regular price Rs. 4,600.00 (Including GST)
Sale price Rs. 4,600.00 (Including GST) Regular price
Unit price

Earn 0 points on this purchase.

Learn more
Product description
What's in the Box
Technical Specifications
Overview
Warranty
Documentation

The Comet CSW-100 is a heavy-duty 2-position wideband coaxial antenna switch designed to route RF signals between a single transceiver and two antenna systems. Engineered for low insertion loss and high port-to-port isolation, the CSW-100 enables efficient antenna selection across HF, VHF, and UHF installations without introducing significant mismatch loss.

Supporting broadband operation from DC to 500 MHz, the CSW-100 is suitable for multi-band amateur radio base stations requiring reliable antenna switching between multiple feedlines.

With high RF power handling capability of up to:

  • 1500W PEP (DC – 30 MHz)

  • 1000W PEP (30 – 170 MHz)

  • 500W PEP (170 – 500 MHz)

the switch can be safely integrated into high-power HF and VHF/UHF operating environments.

Ideal for:

  • Multi-Band HF Base Stations

  • VHF/UHF Antenna Switching

  • SDR Monitoring Systems

  • Satellite Communication Setups

  • Contest Station Installations

✔ CSW-100 Coaxial Antenna Switch Unit
✔ Operating Guide

Note: Coaxial patch cables and antenna feedlines are not included with the standard CSW-100 package. The unused output port is automatically short-circuited during switching.

Brand: Comet
Model Number: CSW-100
Product Type: 2-Position Coaxial Antenna Switch
RFCharge Category: RF Switching Accessories
Frequency Coverage: DC – 500 MHz
Impedance: 50 Ω
Insertion Loss: ≤ 0.2 dB
VSWR: ≤ 1.2:1
Isolation: ≥ 60 dB (0 – 170 MHz), ≥ 35 dB (170 – 500 MHz)
Power Rating: 1500W PEP (DC – 30 MHz)
Power Rating: 1000W PEP (30 – 170 MHz)
Power Rating: 500W PEP (170 – 500 MHz)
Connector Type: SO-239 (UHF Female)
Dimensions: Approx. 78 × 72 × 47 mm
Weight: Approx. 430 g

The CSW-100 Coaxial Switch provides:

  • 2-Position Antenna Selection
  • Low VSWR
  • High Isolation Between Ports
  • Wideband Frequency Support
  • Gold-Plated SO-239 Connectors

Manual rotary switching allows operators to select the desired antenna port while maintaining stable impedance continuity across the RF signal path.

12 Months of Brand Warranty
