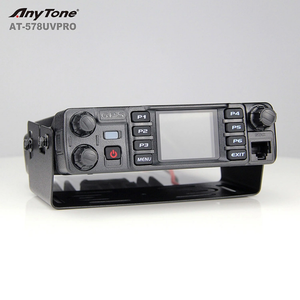

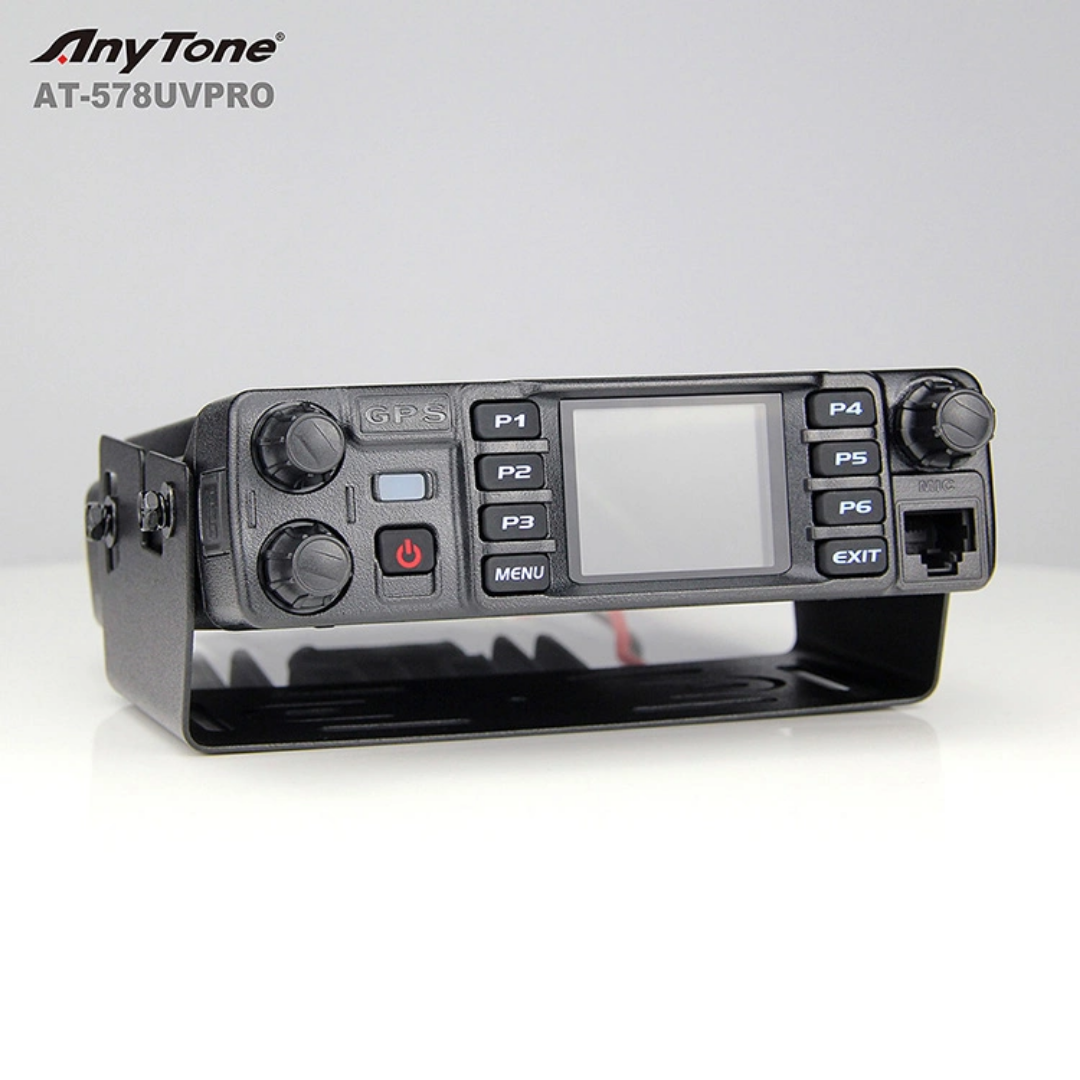

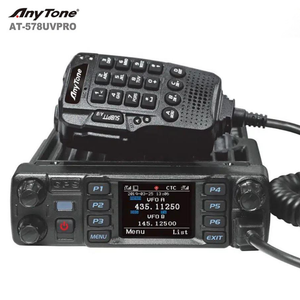

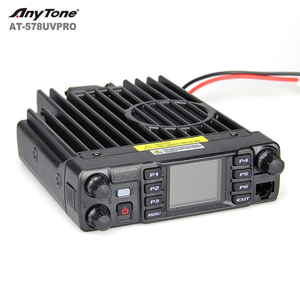

Anytone AT-D578UV Dual Band DMR with Bluetooth, GPS, APRS and Airband
Brand:
Any Tone
Anytone AT-D578UV Dual Band DMR with Bluetooth, GPS, APRS and Airband
Anytone AT-D578UV Dual Band DMR with Bluetooth, GPS, APRS and Airband
Anytone AT-D578UV Dual Band DMR with Bluetooth, GPS, APRS and Airband
The Anytone AT-D578UV Plus is a feature-rich dual-band DMR/FM mobile transceiver designed for amateur radio operators who require advanced digital communication capabilities, APRS functionality, GPS positioning, Bluetooth connectivity, and airband reception. Supporting both analog FM and DMR Tier I/II operation, the radio combines powerful mobile performance, extensive memory capacity, and dual-receive flexibility for mobile, base station, emergency communication, and DMR network applications.
Key Features
- Dual-band VHF/UHF operation with analog FM and DMR digital modes
- DMR Tier I and Tier II compliant digital communication
- Built-in GPS receiver for positioning, tracking, and APRS applications
- Integrated Bluetooth module for wireless audio accessories and vehicle connectivity
- Bluetooth wireless PTT support included
- Full APRS functionality including analog APRS transmit and receive
- DMR APRS transmit and receive capability
- AM airband receive coverage for aviation monitoring
- True dual-receive architecture supporting analog and digital monitoring
- Simultaneous Analog/Analog or Analog/DMR reception
- Cross-band repeater capability
- DMR roaming support for seamless repeater network operation
- Large 1.77-inch TFT color display
- VFO mode and channel mode operation
- 50 Watt VHF transmit output power
- 45 Watt UHF transmit output power
- Four selectable transmit power levels
- Private Call, Group Call, and All Call functionality
- DMR text messaging support
- Digital contact database support for up to 500,000 contacts
- 4,000 programmable memory channels
- 10,000 talkgroup capacity
- 250 programmable zones
- CTCSS and DCS support for analog operation
- DTMF, 2-Tone, and 5-Tone signaling support
- Auto analog/digital signal detection
- Built-in recording capability for digital communications
- Wide FM broadcast receiver coverage
- USB programming and firmware upgrade support
- Upgradeable firmware platform with feature expansion capability

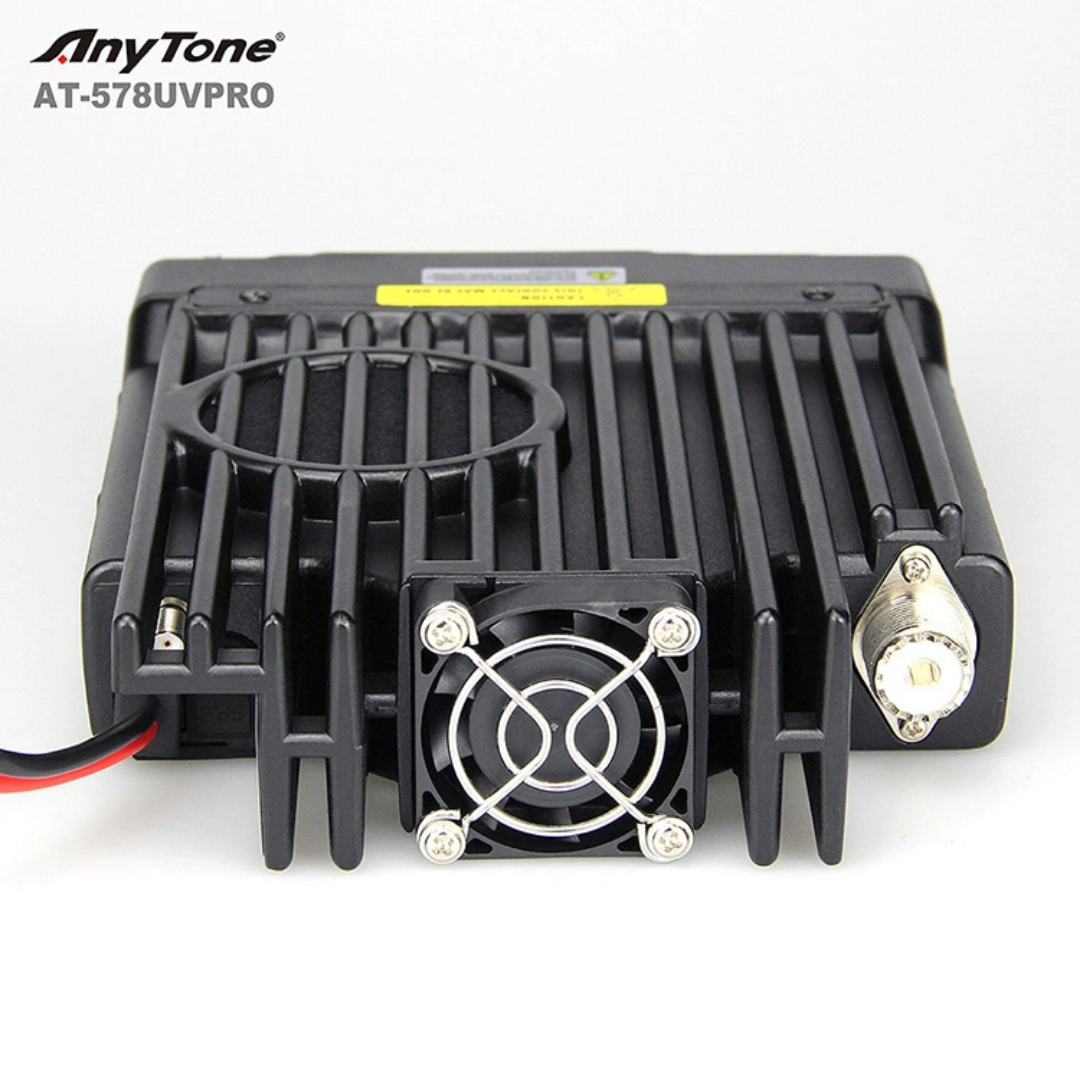

- Heavy-duty aluminum chassis with active cooling fan
- Compatible with amateur radio repeaters, hotspots, APRS networks, and DMR systems worldwide
Typical Uses
- DMR amateur radio network operation
- APRS position reporting and tracking
- Dual-band mobile communications
- Airband monitoring
- Cross-band repeater applications
- Emergency and disaster communications
- Mobile and fixed-station digital voice operation
- Hotspot and repeater access
In the Box
- Anytone AT-D578UV Plus Transceiver

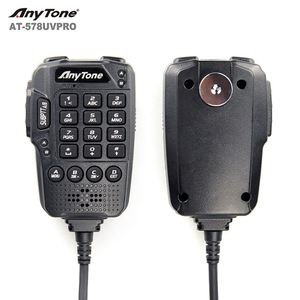

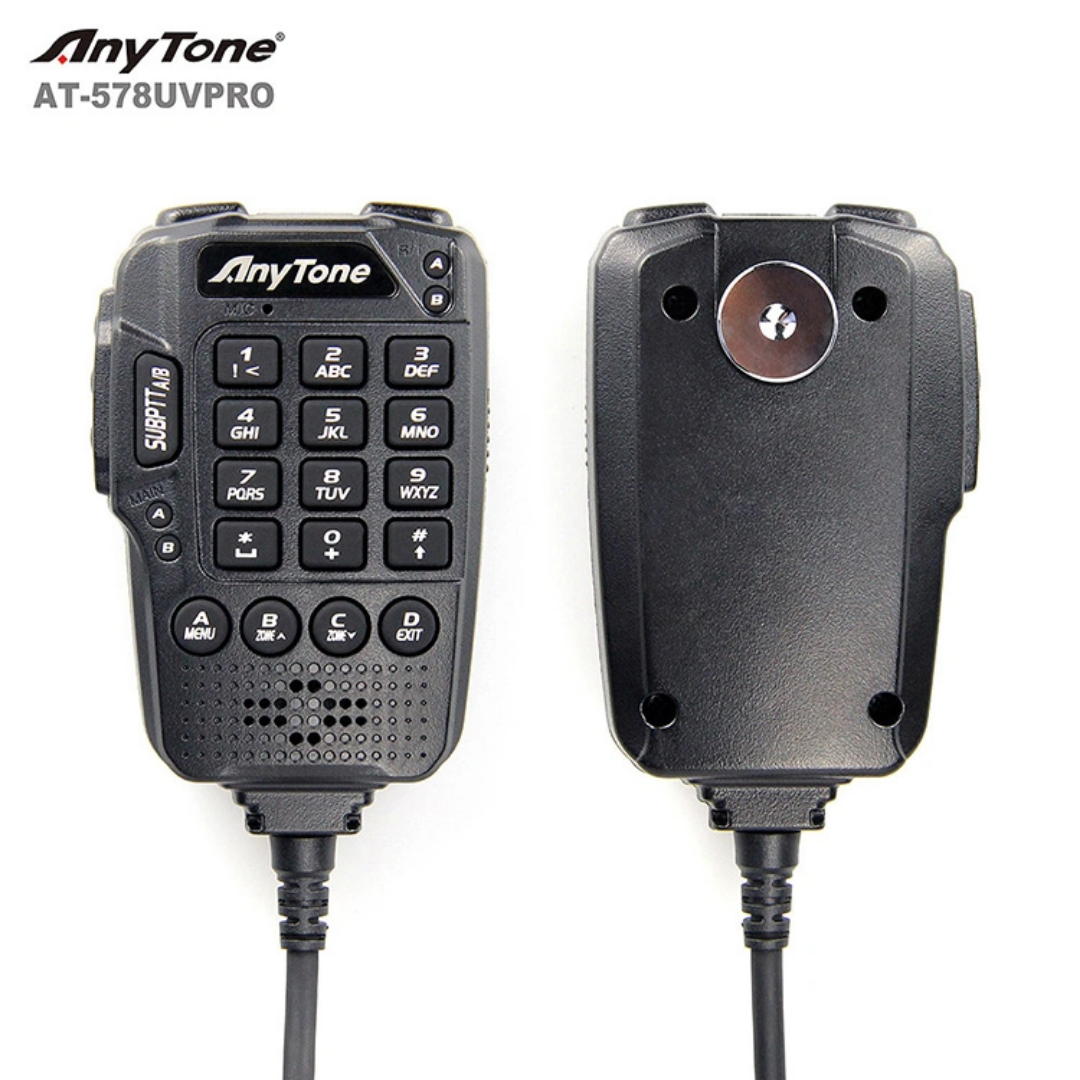

- DTMF Hand Microphone
- GPS Antenna
- Bluetooth PTT Button
- USB Programming Cable
- DC Power Cable
- Mobile Mounting Bracket
- Microphone Hanger
- Mounting Hardware
- User Documentation
| Brand | Anytone |
| Model Number | AT-D578UV Plus |
| Product Type | Dual-Band DMR/FM Mobile Transceiver |
| Frequency Coverage TX VHF | 136-174 MHz |
| Frequency Coverage TX UHF | 400-480 MHz |
| Frequency Coverage RX VHF | 136-174 MHz |
| Frequency Coverage RX UHF | 400-480 MHz |
| Airband Receive | 108-136 MHz AM |
| Broadcast FM Receive | 87.5-108 MHz |
| Operating Modes | DMR Tier I/II/FM |
| Dual Receive | Analog/Analog or Analog/DMR |
| RF Output Power VHF | 50W/25W/10W/5W |
| RF Output Power UHF | 45W/25W/10W/5W |
| GPS Receiver | Built-In |
| Bluetooth | Built-In |
| Bluetooth PTT | Included |
| APRS Analog | TX/RX |
| APRS Digital | TX/RX |
| Cross-Band Repeat | Supported |
| DMR Roaming | Supported |
| Display | 1.77in Color TFT |
| Memory Channels | 4000 |
| Zones | 250 |
| Talkgroups | 10000 |
| Digital Contacts | 500000 |
| Call Types | Private/Group/All Call |
| Text Messaging | Supported |
| CTCSS | Supported |
| DCS | Supported |
| DTMF | Supported |
| 2-Tone Signaling | Supported |
| 5-Tone Signaling | Supported |
| Auto Analog/Digital Detection | Supported |
| Recording Function | Built-In |
| Programming Interface | USB |
| Firmware Upgrade | Supported |
| Cooling System | Built-In Fan |
| Antenna Impedance | 50 Ohm |
| Power Supply | 13.8VDC |
| Display Type | Color TFT LCD |
| Chassis | Aluminum |
| Microphone | DTMF Microphone Included |
| GPS Antenna | Included |
