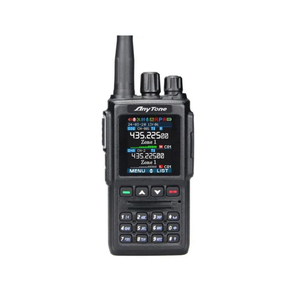

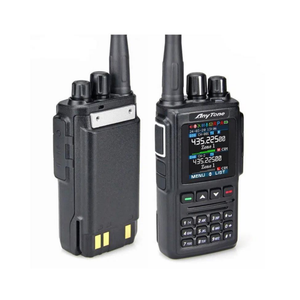

AnyTone AT-D168UV Dual Band DMR Handheld Transceiver
Brand:
Any Tone
AnyTone AT-D168UV Dual Band DMR Handheld Transceiver
The AnyTone AT-D168UV is a compact dual-band VHF/UHF handheld transceiver supporting both DMR digital and analog FM operation. Designed for portable amateur radio communications, it combines GPS functionality, Bluetooth® support, extensive memory capacity, and a large color display in a lightweight handheld platform suitable for everyday operation, travel, emergency communications, and DMR network access.
Key Features
- Dual-band VHF/UHF handheld transceiver
- DMR Tier I and Tier II digital voice operation
- Conventional analog FM communication support
- Built-in GPS receiver for position reporting and location services
- Integrated Bluetooth® connectivity for wireless accessories
- 1.77-inch high-resolution color TFT display
- Dual-channel monitoring capability
- VFO and memory channel operating modes
- Up to 6 Watts RF output power
- 4,000 programmable memory channels
- 250 programmable zones
- 10,000 talkgroup capacity
- 500,000 digital contact database support
- Private Call, Group Call, and All Call functionality
- DMR roaming support for seamless network operation
- Digital APRS receive and transmit support
- Analog APRS receive and transmit support
- SMS and text messaging capability in DMR mode
- AES and digital encryption support
- Built-in voice recording functionality
- CTCSS and DCS signaling for analog operation
- DTMF, 2-Tone, and 5-Tone signaling support
- Emergency alarm and lone worker functions
- Programmable side keys for rapid feature access
- USB-C charging and programming interface
- Firmware upgrade capability
- High-capacity lithium-ion battery for extended operating time
- Compact ergonomic design for portable field use
- Ideal for DMR networks, repeaters, travel, emergency communications, and portable amateur radio activities
Typical Uses
- DMR digital voice communications
- Dual-band VHF/UHF portable operation
- APRS position reporting and tracking
- Emergency and disaster communications
- Travel and field activities
- Repeater and hotspot operation
- Public service and event communications

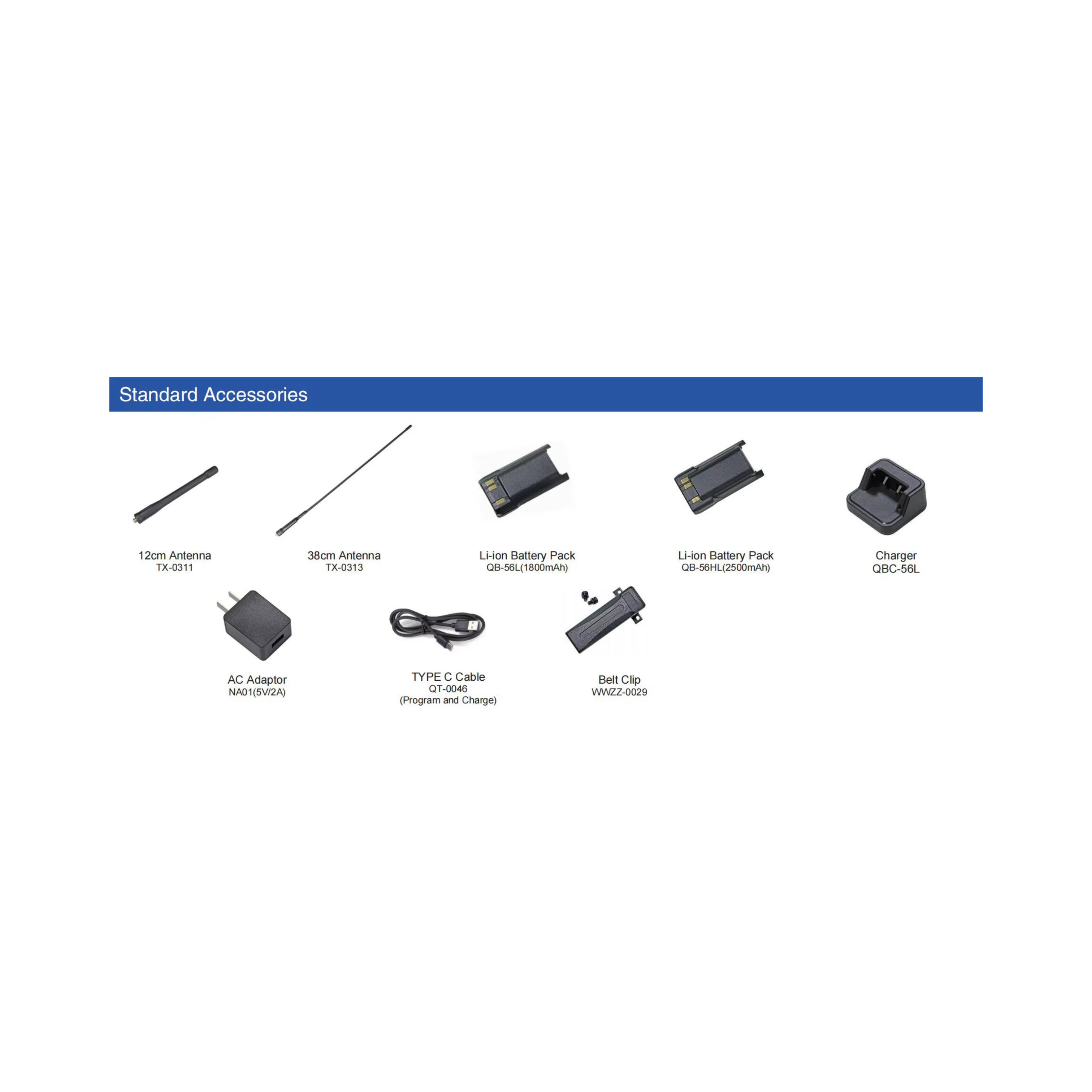

In the Box
- AnyTone AT-D168UV Handheld Transceiver
- Lithium-Ion Battery Pack
- Dual-Band Flexible Antenna
- Desktop Charging Cradle
- AC Power Adapter
- Belt Clip
- Hand Strap
- USB-C Cable
- User Documentation
| Brand | AnyTone |
| Model Number | AT-D168UV |
| Product Type | Dual-Band DMR/FM Handheld Transceiver |
| Frequency Coverage TX VHF | 136-174 MHz |
| Frequency Coverage TX UHF | 400-480 MHz |
| Frequency Coverage RX VHF | 136-174 MHz |
| Frequency Coverage RX UHF | 400-480 MHz |
| Operating Modes | DMR Tier I/II/FM |
| RF Output Power | 6W/2.5W/0.5W |
| Display | 1.77in Color TFT LCD |
| GPS Receiver | Built-In |
| Bluetooth | Built-In |
| Dual Channel Receive | Supported |
| Memory Channels | 4000 |
| Zones | 250 |
| Digital Contacts | 500000 |
| Talkgroups | 10000 |
| Call Types | Private/Group/All Call |
| DMR Roaming | Supported |
| Analog APRS | TX/RX |
| Digital APRS | TX/RX |
| Voice Recording | Supported |
| Text Messaging | Supported |
| AES Encryption | Supported |
| CTCSS | Supported |
| DCS | Supported |
| DTMF | Supported |
| 2-Tone Signaling | Supported |
| 5-Tone Signaling | Supported |
| Emergency Alarm | Supported |
| Lone Worker | Supported |
| USB Interface | USB-C |
| Firmware Upgrade | Supported |
| Battery Type | Li-Ion |
| Battery Capacity | 2600mAh |
| Audio Output Power | 1W |
| Antenna Connector | SMA Female |
| Frequency Stability | ±1.0ppm |
| Channel Spacing | 12.5kHz/25kHz |
| Dimensions | 129 x 61 x 39 mm |
| Weight | Approx. 290g |
| Charging Method | Desktop Charger/USB-C |
