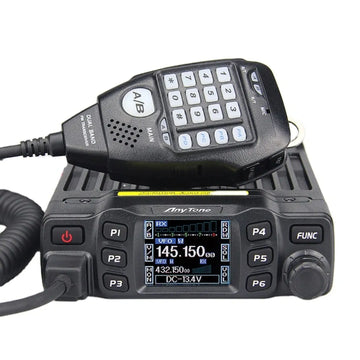

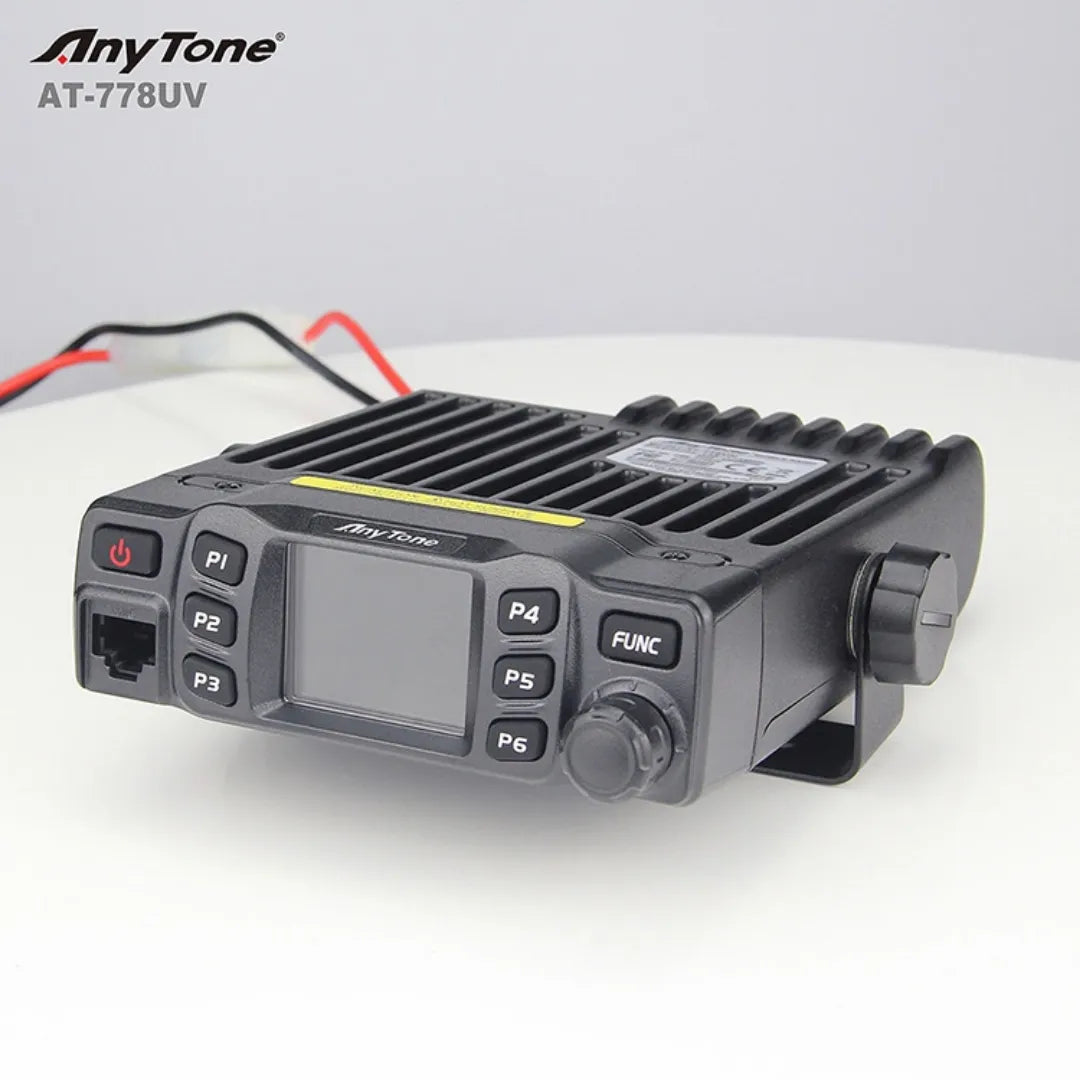

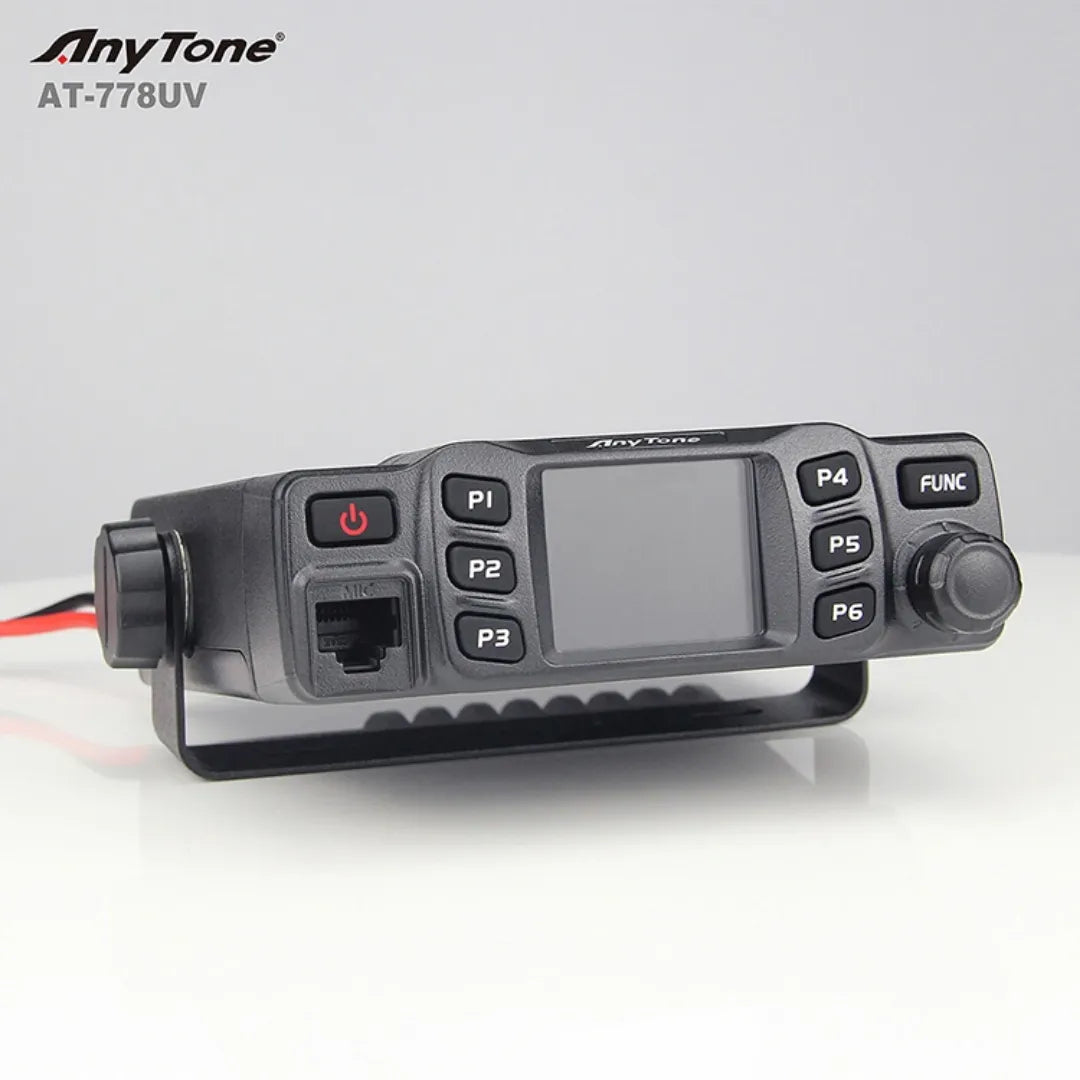

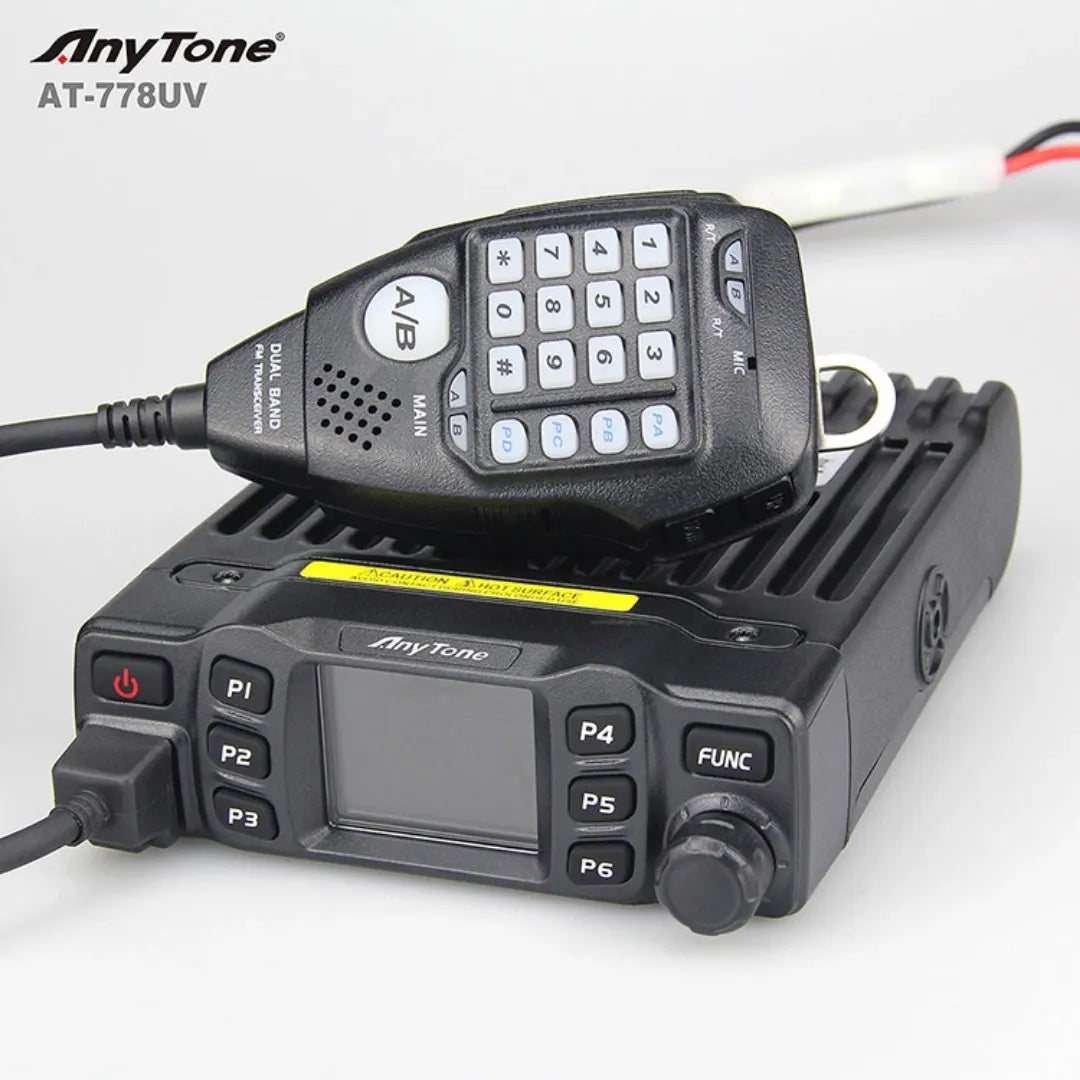

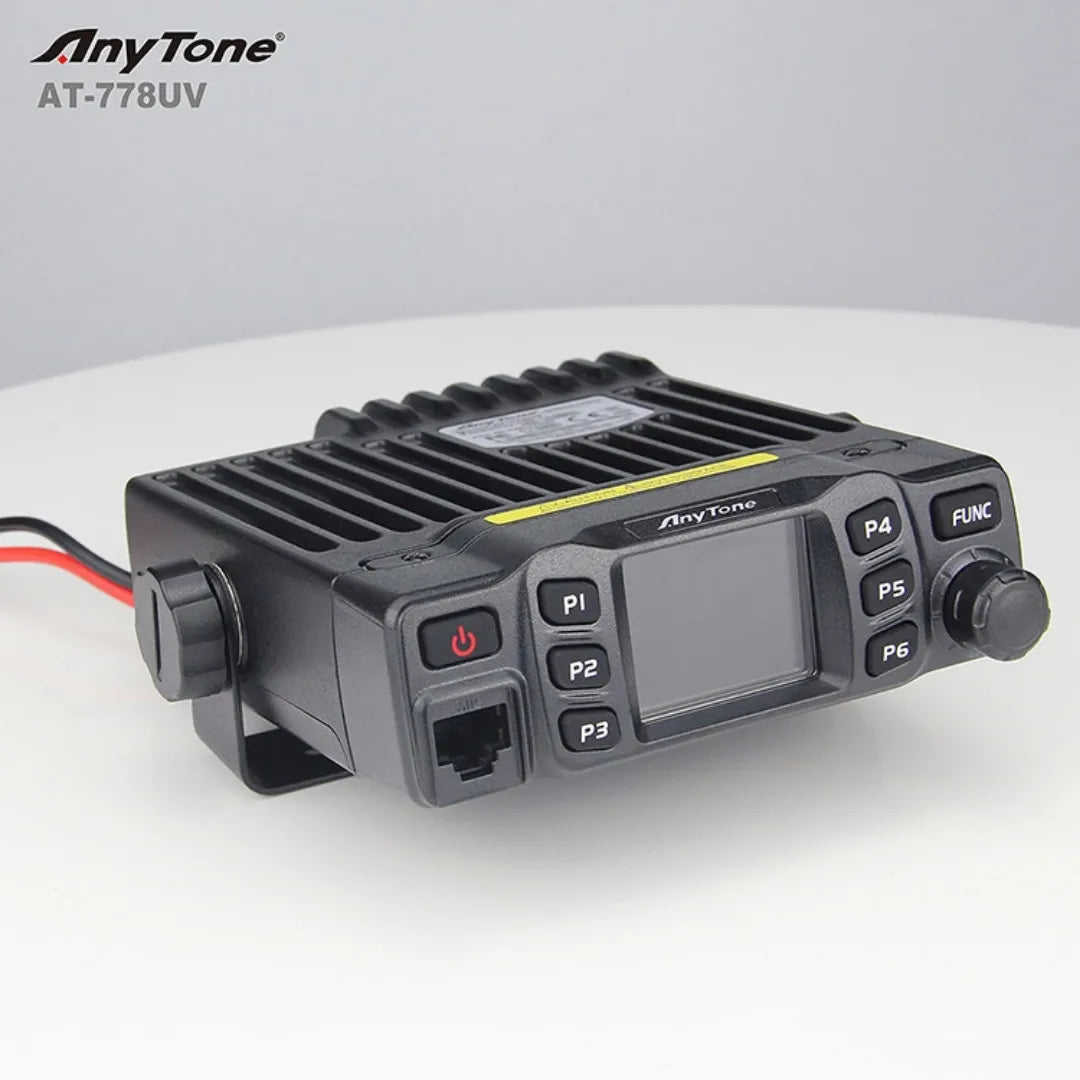

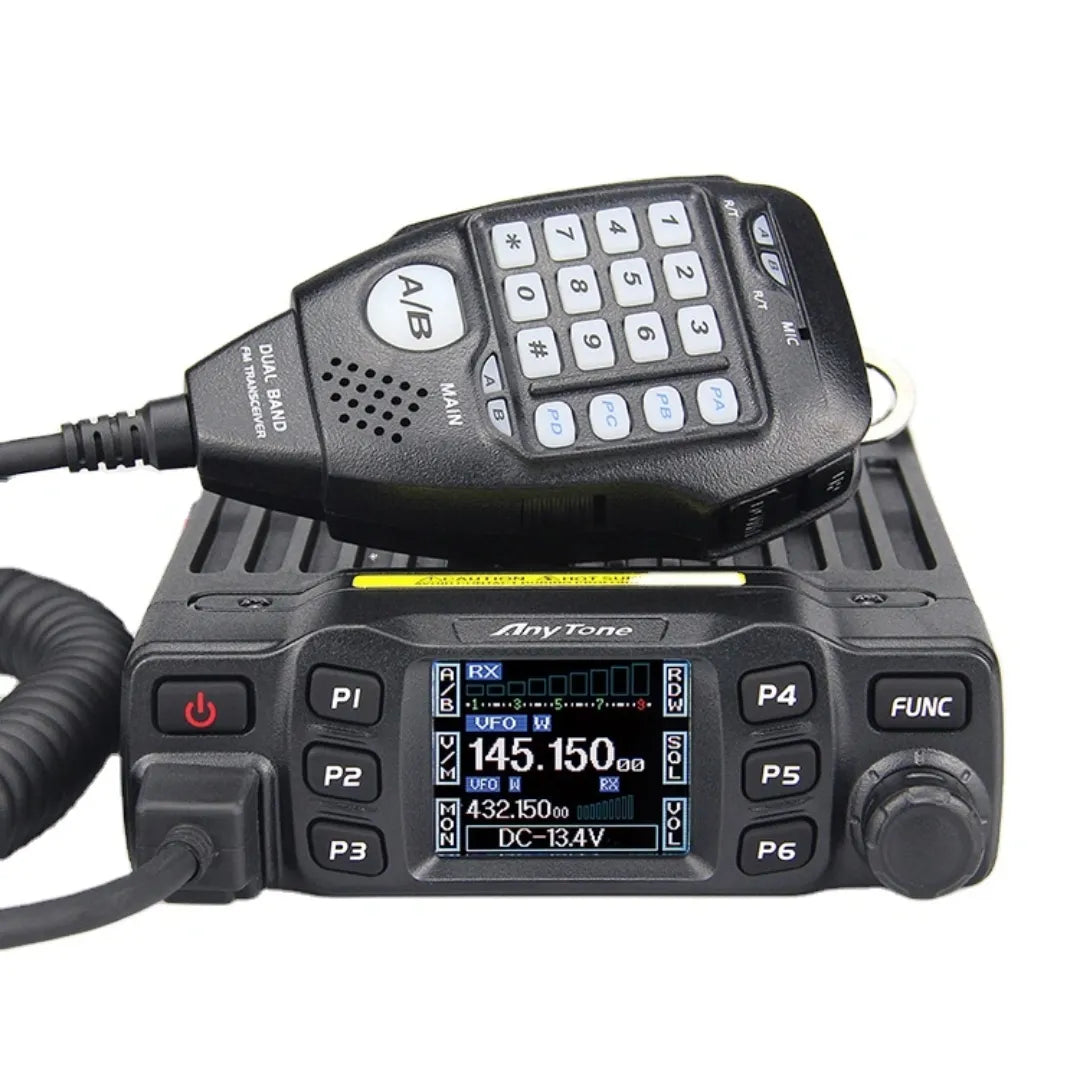

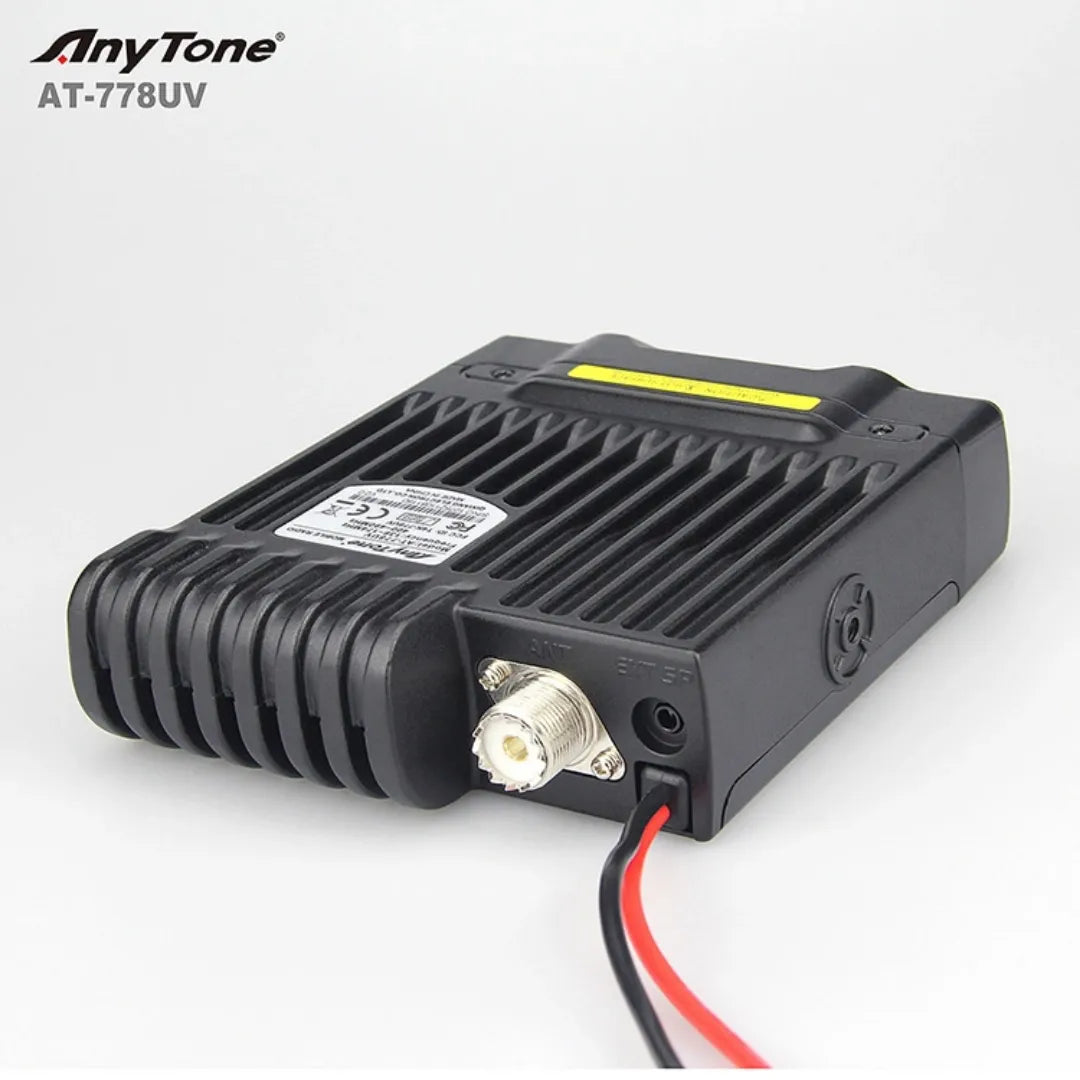

Anytone AT-778UV-II VHF UHF FM Transceiver
Brand:
Any Tone
Anytone AT-778UV-II VHF UHF FM Transceiver
Anytone AT-778UV-II VHF UHF FM Transceiver
Anytone AT-778UV-II VHF/UHF FM Transceiver
The Anytone AT-778UV-II is a compact dual-band VHF/UHF FM mobile transceiver designed for amateur radio operators seeking reliable performance in a space-saving package. Featuring dual-band coverage, selectable high-power output, extensive channel storage, and flexible installation options, the AT-778UV-II is well suited for mobile, base station, repeater, and emergency communication applications.
Key Features
- Dual-band VHF and UHF FM operation
- Compact mobile transceiver design for limited installation spaces
- 25 Watt RF output on VHF and UHF bands
- Selectable high, medium, and low transmit power levels
- Wide and narrow FM operating modes
- 200 programmable memory channels
- Dual-frequency and dual-watch monitoring capability
- Large backlit LCD display with frequency and channel information
- Built-in CTCSS encoder and decoder
- Built-in DCS encoder and decoder
- Tone scan function for repeater access identification
- DTMF encode functionality through supplied microphone
- Automatic repeater shift support
- Programmable repeater offset settings
- Channel scan and priority scan functions
- Busy channel lockout protection
- Time-out timer operation
- VOX capability with compatible accessories
- Programmable function keys for rapid access to frequently used features
- Front-panel speaker for clear receive audio
- External speaker connection support
- PC programming support for channel and configuration management
- Radio cloning capability
- Voltage display and monitoring functions
- Compact die-cast chassis for durability and heat dissipation
- Suitable for mobile operation, repeater communications, emergency communications, and everyday amateur radio use
Typical Uses
- Dual-band VHF/UHF repeater operation
- Mobile amateur radio installations
- Emergency and disaster communications
- Public service and event communications
- Fixed-station VHF/UHF operation
- Travel and expedition communications
- Daily amateur radio communication networks
In the Box
- Anytone AT-778UV-II Transceiver
- DTMF Hand Microphone
- DC Power Cable
- Mobile Mounting Bracket
- Microphone Hanger
- Mounting Hardware Kit
- User Documentation
| Brand | Anytone |
| Model Number | AT-778UV-II |
| Product Type | Dual-Band VHF/UHF FM Mobile Transceiver |
| Frequency Coverage TX VHF | 144-148 MHz |
| Frequency Coverage TX UHF | 430-450 MHz |
| Frequency Coverage RX VHF | 136-174 MHz |
| Frequency Coverage RX UHF | 400-490 MHz |
| Operating Modes | FM/NFM |
| RF Output Power VHF | 25W/15W/5W |
| RF Output Power UHF | 25W/15W/5W |
| Memory Channels | 200 |
| Dual Watch | Supported |
| Display | Backlit LCD |
| CTCSS Encoder | Built-In |
| CTCSS Decoder | Built-In |
| DCS Encoder | Built-In |
| DCS Decoder | Built-In |
| DTMF Encode | Supported |
| Tone Scan | Supported |
| Automatic Repeater Shift | Supported |
| Priority Scan | Supported |
| Channel Scan | Supported |
| Busy Channel Lockout | Supported |
| Time Out Timer | Supported |
| VOX | Supported |
| Programming | PC Programmable |
| Cloning Function | Supported |
| External Speaker Jack | Supported |
| Channel Spacing | 12.5kHz/25kHz |
| Frequency Stability | ±2.5ppm |
| Antenna Connector | SO-239 |
| Antenna Impedance | 50 Ohm |
| Power Supply | 13.8VDC ±15% |
| Current Consumption RX | Less Than 0.5A |
| Current Consumption TX | Up To 6A |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 124 x 40 x 101 mm |
| Weight | Approx. 450g |
| Microphone | DTMF Microphone Included |
