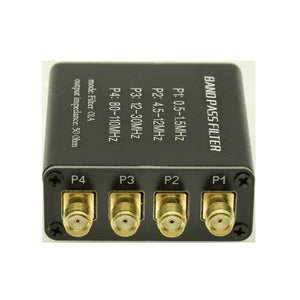

0.5-1.5MHz/4.5-12MHz/12-30MHz/80-110MHz BPF

0.5-1.5MHz/4.5-12MHz/12-30MHz/80-110MHz Band Pass Filter

The 0.5–1.5MHz / 4.5–12MHz / 12–30MHz / 80–110MHz Band Pass Filter is a compact multi-band RF filter designed to improve receiver performance by passing only the desired frequency ranges while suppressing out-of-band interference. Featuring four independently filtered bands, low insertion loss, and 50-ohm impedance, it is ideal for SDR receivers, spectrum analyzers, HF receivers, and RF laboratory applications.

Key Features

• Four-band RF band-pass filter module
• Passbands: 0.5–1.5 MHz, 4.5–12 MHz, 12–30 MHz, and 80–110 MHz
• Designed to reject unwanted out-of-band signals
• Improves receiver dynamic range and selectivity
• Suitable for SDR receivers and spectrum analyzers
• Optimized for HF and VHF monitoring applications
• Low insertion loss within each passband
• High out-of-band attenuation
• 50 Ohm RF impedance
• Wide compatibility with amateur radio equipment
• Supports broadcast, HF, and FM monitoring applications
• Reduces strong-signal overload and intermodulation
• Compact metal enclosure for improved shielding
• SMA female RF connectors for easy integration
• Passive design requiring no external power
• Suitable for laboratory, educational, and RF development work
• Improves SDR reception in high RF environments
• Can be used ahead of LNAs or SDR receivers
• Ideal for shortwave listening and broadcast monitoring
• Rugged construction for long-term operation
• Simple inline installation
• Designed for receive applications
• Lightweight and portable
• Excellent accessory for RF experimentation
• Compatible with 50 Ohm coaxial systems

Typical Uses

• Software Defined Radio (SDR) receivers
• Shortwave listening (SWL)
• HF and VHF receiver front ends
• Broadcast monitoring
• Spectrum analyzer measurements
• RF laboratory testing
• Amateur radio receiving systems

In the Box

• 4-Band Band Pass Filter Module
• Protective enclosure
• User documentation
